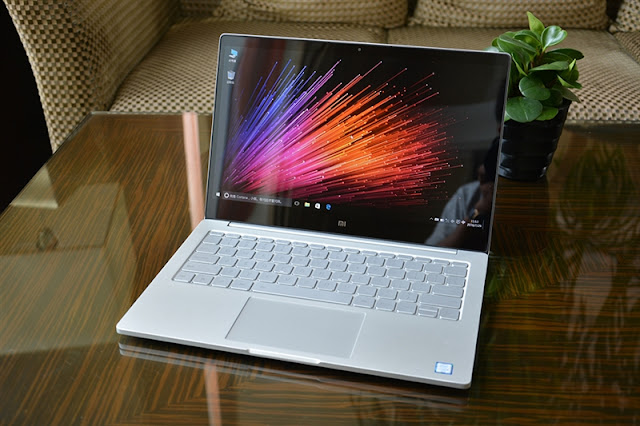

An Inside View Of Super Notebook - Mi Notebook Air 13.3"


The most beautiful and the powerful Mi Notebook Air finally into the business. It is all you ever imagined and also more. This is , designed beautifully and equipped with amazing Specifications and a lot more interesting features. Take a look at the specs of Mi Notebook Air:

Mi Notebook Air 13.3"
  • Intel Core i5 processor, runs Windows 10 Home
  • 8GB next-generation DDR4 RAM
  • 256GB PCIe SSD, expandable SSD slot
  • NVIDIA GeForce 940MX high-performance dedicated graphics card
  • Powered by Windows 10 Home
  • Lightweight, full-metal body
  • 9.5 hours extended battery life, supports 1C quick charging, can be charged to 50% in just 30 minutes
  • 802.11ac dual-band Wi-Fi
  • AKG custom grade dual speakers, supports Dolby Digital surround sound
  • 5.59mm ultra-thin bezel
  • Fully laminated, 1080p FHD display with edge-to-edge glass protection
  • Ultra-thin, individually backlit, full-sized keyboard
  • Full set of connectors: HDMI, USB 3.0 x 2, 3.5mm headphone jack, USB Type-C
  • Supports Bluetooth 4.1 and can be unlocked with Mi Band 2
  • 13.3” display, 309.6mm x 210.9mm x 14.8mm; 1.28kg
  • Mi Cloud Sync ready
  • Logoless exterior, clean minimalistic design

And this powerful Notebook is available at USD 750 (Mi Notebook Air 13.3"). Cannot hold your knees to get Mi Notebook Air into your hands? The good news is, Mi has officially launched the Notebook today and will sell the device internationally very soon!! So lets have a short overview of Xiaomi Notebook Air . We will also have a tear-down of Mi Notebook Air 13.3"", yeah you heard it right, the first teardown of the new Mi Notebook, to see how its made inside.

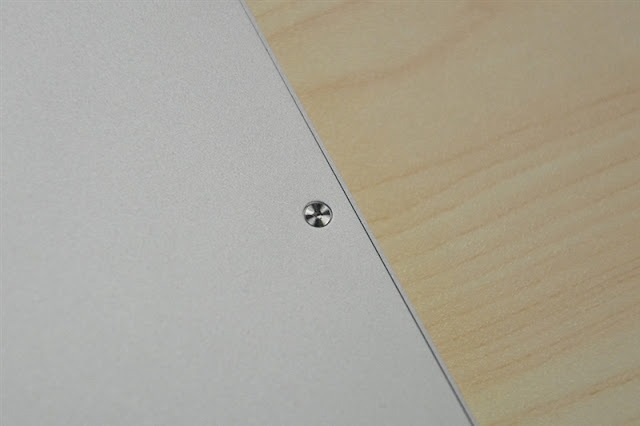

Mi Notebook Air uses no logo design does not provide consumers with a variety of wallpaper A surface design, and according to their preferences using laser engraving technology to personalize the pattern for his laptop A face carving.

Teardown

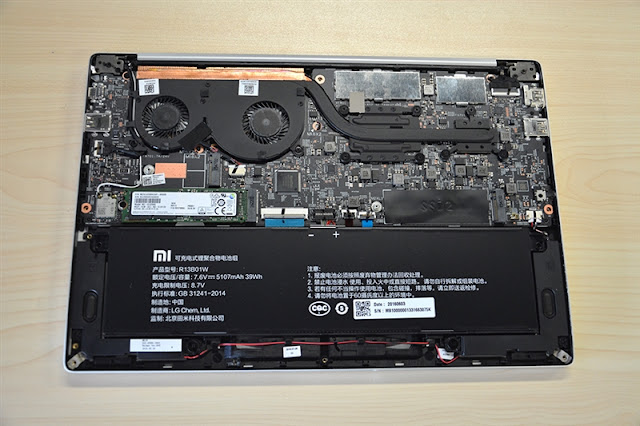

This is an overall view of Mi Notebook Air 13.3-inch version of the internal structure .


First we removed laptop battery part, the battery is produced by LG, rated voltage of 7.6V, the rated battery capacity of 5107mAh 39Wh, charging limit voltage is 8.7V


Battery socket part.


Battery socket part.


After removing battery, we can see the Notebook assembly date.


Motherboard linking part.


SSD removal.


Additional slot for SSD


Single brass dual fan cooling.








Wi-Fi module.


Intel i5-6200U processor and integrated graphics core.


GT940MX NVIDIA discrete graphics.

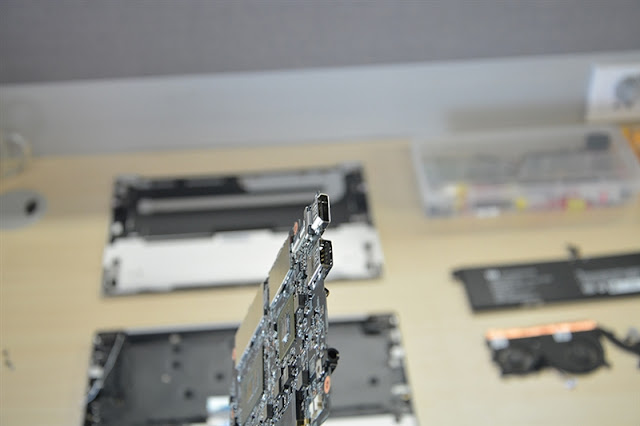

Motherboard.







Keyboard cover.

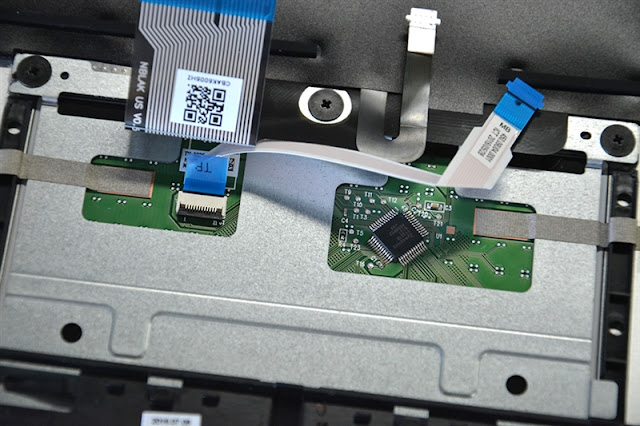

Touchpad chips.

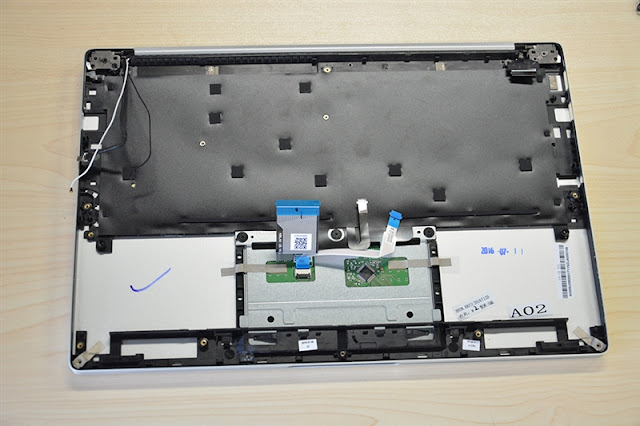

Keyboard Back.

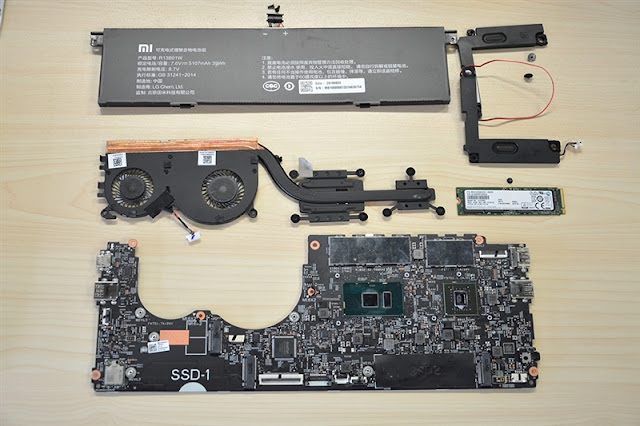

All parts after Tear down.


Final Tear-down - consisting of full parts.
